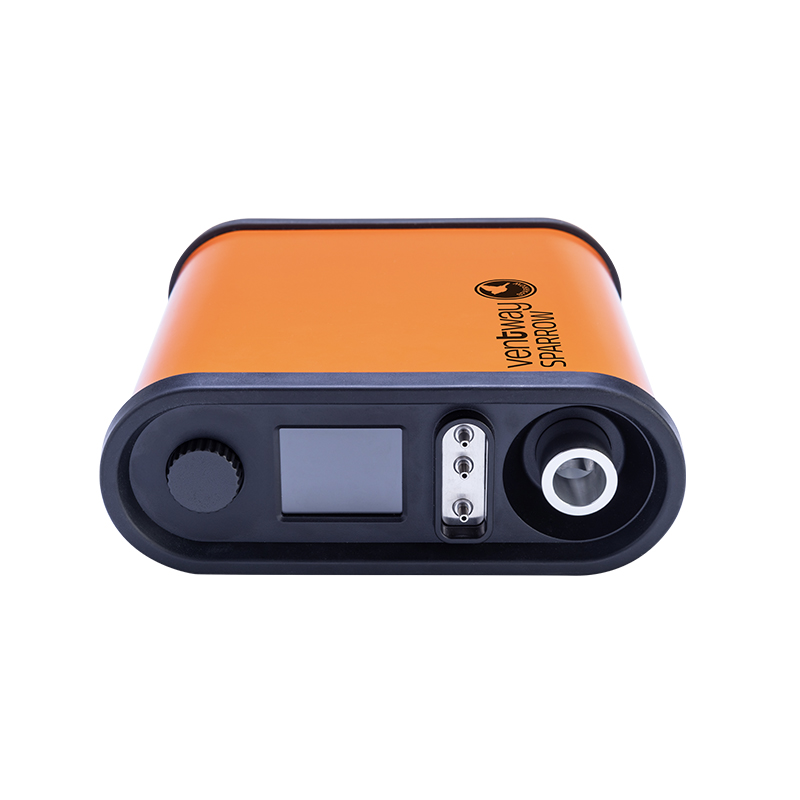

Ventilator, Ventway Sparrow,

Description

The Ventway Sparrow is a groundbreaking family of transport and emergency ventilators designed to stand up to the harshest of conditions while providing reliable high-performance ventilation at all times. Whether you are at the scene of an emergency, in an ambulance, in an air transport, or at a hospital, Ventway Sparrow will provide you with an unparalleled continuum of ventilation; supporting all the major ventilation modes for adults and pediatric patients (invasive and non-invasive) demonstrating how intelligent design can improve the quality of care. A civilian version used by paramedics and air ambulances.

The Ventway Sparrow EMS is designed to be impact-resistant, ultra-portable and lightweight. Enhance the standard of care by delivering hospital ventilation performance in the field from the point of injury all the way to the ICU with just one compact ventilator.

Ventway Sparrow (P/N: VWSP-1000) Includes:

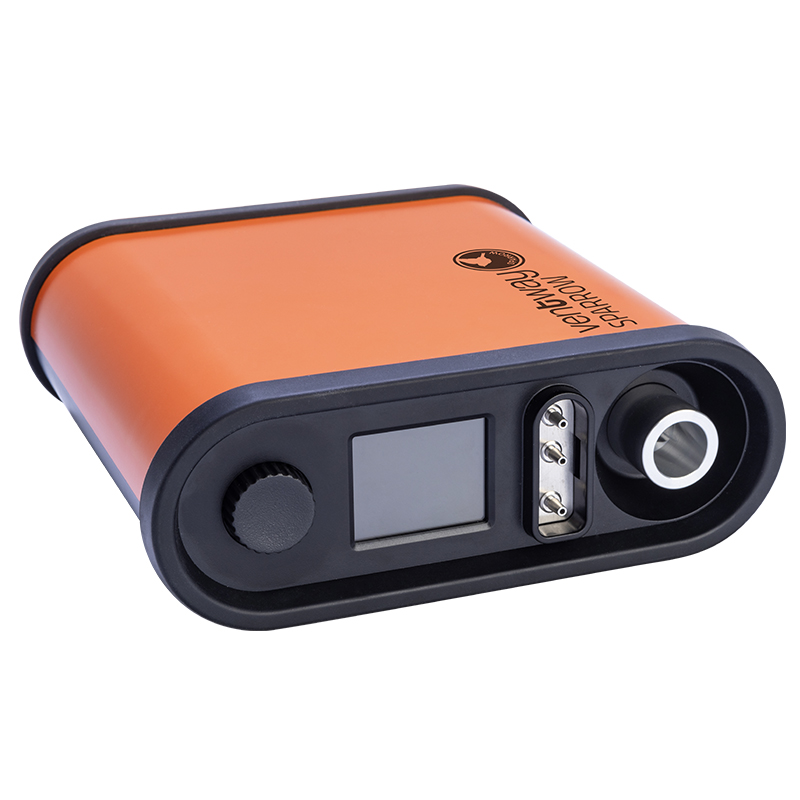

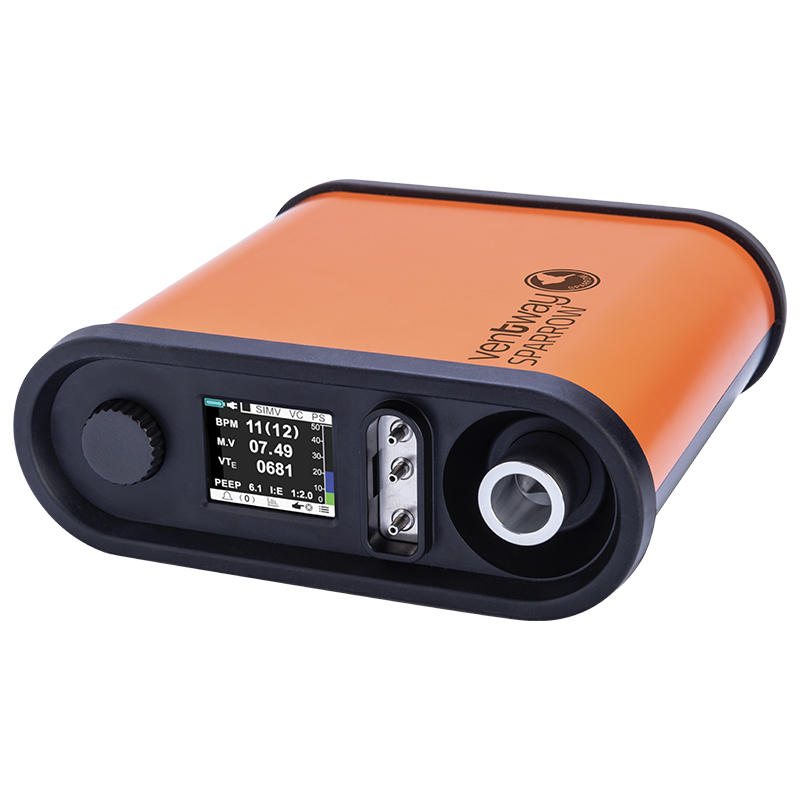

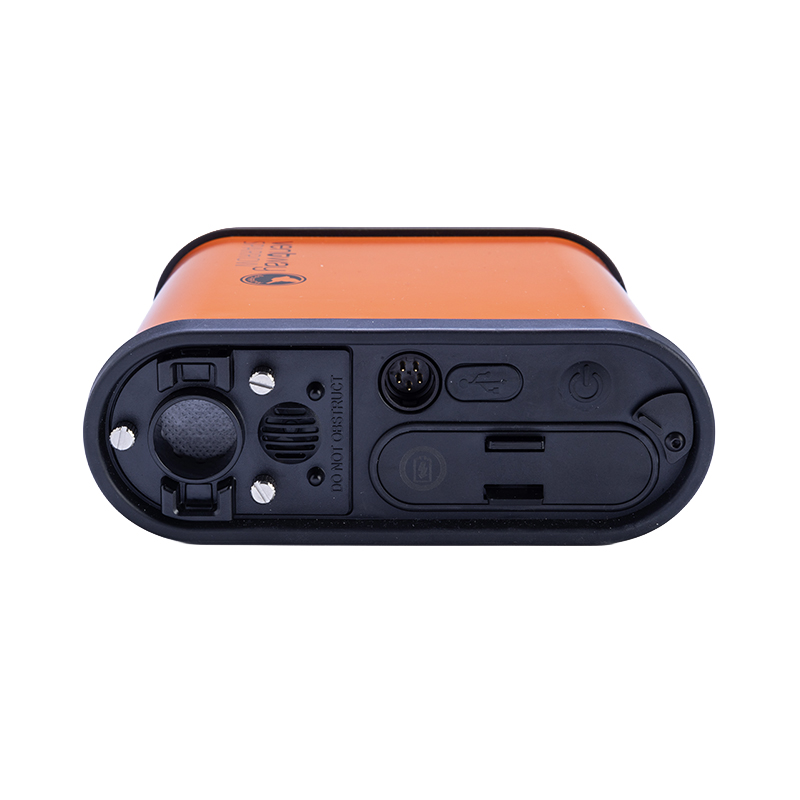

(1) Ventway Sparrow Ventilator

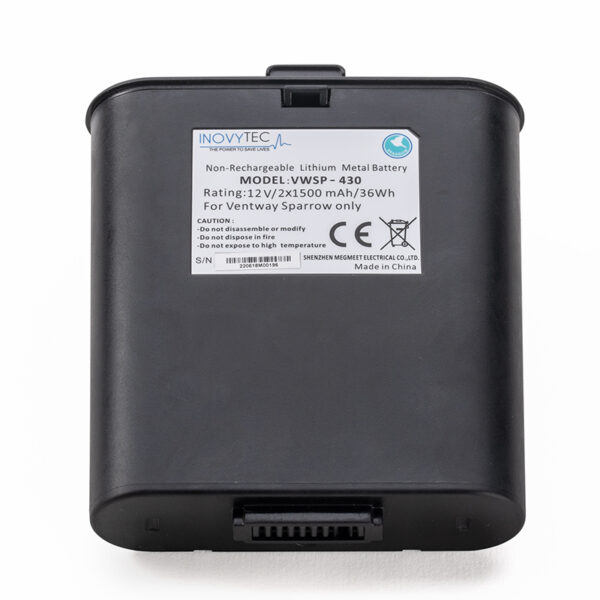

(1) Rechargeable Battery

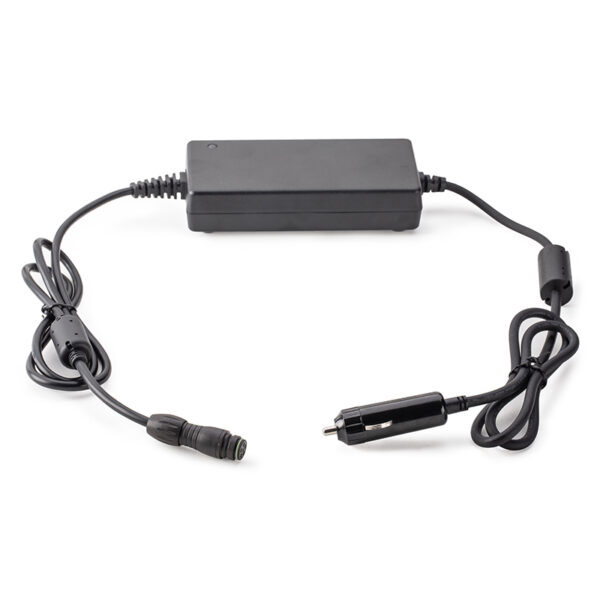

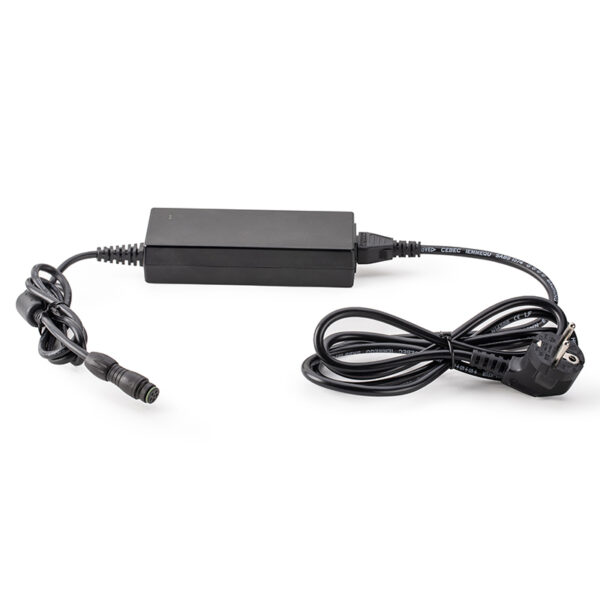

(1) AC/DC Power Adapter

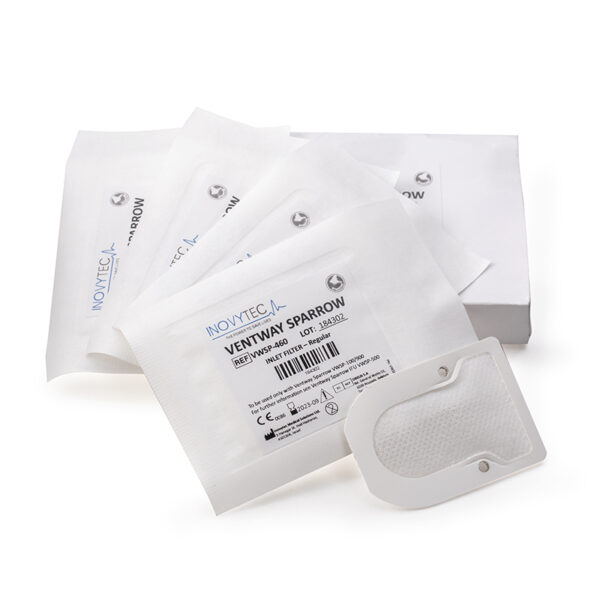

(1) Filter

Performance Data:
Ventilation Modes*
• SIMV-VC-PS, SIMV-PC, AC-VC, AC-PC, CPAP, Bi-Level, HFNC, CPR

Adult & Pediatric
• Patient Weight >5 Kg (11 lb)

Respiratory Rate
• 1 – 60 ± 1 bpm

Peak Inspiratory Pressure (PIP)
• 0 to 60 cmH2O ± 2 cmH2O or 10% whichever is greater

Tidal Volume
• 50-2000 mL ±10% + 4 mL

Inspiratory Pressure Limit
• 11 to 60 cmH2O ± 2 cmH2O or 10% whichever is greater

Inspiratory Time
• 0.3 to 4 ± 10% sec

I:E Ratio
• 1:4 to 4:1

Peak Flow (PIF)
• Mandatory breaths: 130 L/min (-5% to +10%)
• Spontaneous breaths: 160 L/min ± 10%

Oxygen Mix (FiO2)
• 21%-100%
• Accuracy of FiO2: 30%- 40%, ±15% | 40% to < 95%, ±10% • 95% to 100%, ±5% PEEP • 0 to 20 cmH2O ± 1 cmH2O (externally adjusted) Trigger Sensitivity • -0.25 to -10 cmH2O Pressure, Off Pressure Support Limit • 11 to 50 cmH2O above PEEP ± 2 cmH2O Pressure Alarm Limit • 10 to 55 cmH2O above PEEP ± 2 cmH2O FiO2 Low Pressure Enrichment • 21% to 100% (low and high pressure oxygen source) Altitude • -1200 ft up to 25,000 ft (-370m to 7,620m) * Ventilation modes availability is subject to market approval.
