Suction Unit, Laerdal Compact Suction Unit 4 (LCSU 4) 800ml


Buy Now

When extra suction volum is needed, an alternative LCSU 4 version is available. This version has a 800ml Canister supported by a Wire Stand bracket. The Canister is disposable, it can not be cleaned. The Canister has an internal filter in the lid and mecanical shutoff valve that protects against contamination and overflow. To increase filtration efficiency the Vacuum Tube may be replaced with a High Efficiency Filter Kit. The Kit is used in situations where there is a high risk of cross-contamination.

Includes: Main unit, 800ml disposable canister, patient tube, AC/DC Adapter charger with AC Power cord, Battery, Directions for Use, Carry Bag, wire stand, vacuum tube

Categories: , ,
This product requires a Prescription Drug Authorization Form for your account.
If you add it to your cart, you will not be able to checkout without providing one.
SKU #: 01-437101
By: Laerdal  |  MPN: 88005101

Common Additions:

SKU #: 01-435800
By: Laerdal  |  MPN: 886100
SKU #: 01-56400
By: Laerdal  |  MPN: 884500
SKU #: 11-435405
By: Laerdal  |  MPN: 886113
SKU #: 01-487006
By: Laerdal  |  MPN: 886106
This product requires a Prescription Drug Authorization Form for your account.
If you add it to your cart, you will not be able to checkout without providing one.


CE marked – This product is in compliance with the essential requirements of Council Directive 93/42/EEC Medical Device Directive, as amended by Council Directive 2007/47/EC, class IIa
• One-hand-grip design
• Small and lightweight
• Click-in-place 300 ml canister, no vacuum tube needed
• 800 ml canister option when extra volume is needed
• Disposable canister systems
• Easy to convert between 300 and 800 ml canister version
• Internal integrated filter systems for all canisters
• High efficiency filter kit (for 800 ml solution)
• HEPA rated bacterial filter
• Latex free
• Big vacuum regulator dial, with “clicking sound”
• LED display for use day or night
• Battery level indicator
• Children vacuum range area (marked in blue) on the control panel
• Arrows pointing the vacuum directions
• Wire Stand for stability (for both versions)

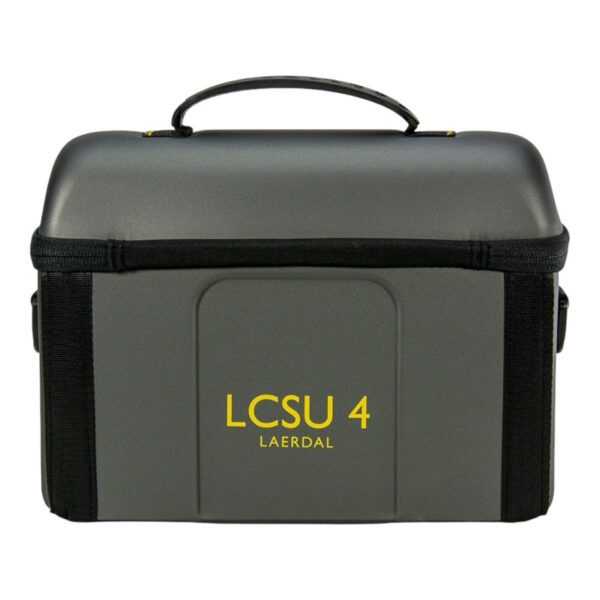

• High density carry bags
• No-tools-necessary field changeable battery
• Rechargeable Battery, NiMH 12 volt 1.6 Ah.
• Battery run time: Approximately 45 minutes (free flow)
• AC/DC Adapter Charger (100-240 V)
• External Battery Charger
• 12V DC Power-cord for connection to vehicle connection
• 2 year limited warranty (excluding the canisters, tubing systems and battery. Battery = 90 days)
• Multi languange Directions for Use (19 languages)
• High flow / High vacuum
• Air Flow @ Vacuum Inlet: 30 LPM (free flow) typical
• Vacuum – Max.: 550+ mmHg (73.3 kPA)
• Vacuum – Range: 50 – 550+ mmHg (6.7 – 73.3 kPa)
• 300 ml canister version: 18.5 cm x 26.2 cm x 8.12 cm (7.3″ x 10.3″ x 3.2″)
• 800 ml canister version: 23.6 cm x 19 cm x 23.6 cm (9.3″ x 7.5″ x 9.3″)

• Limited Warranty: The LCSU 4 (item 880051 & 880061) comes with a two (2) year limited warranty, excluding the Canisters, Tubing systems and Battery. See the enclosed “Laerdal Global Warranty” for terms and conditions.
• The Battery is warranted for 90 days.
• NOTE: The warranty periods for suction units and batteries begin when Laerdal ships to the customer or distributor. If inventory is maintained for stock purposes, please be sure to rotate the products by purchase dates. To maximize the shelf-life of batteries it is strongly recommended to deplete all inventory within 6 months from time of purchase.
• The LCSU 4 must be placed on charge for a minimum of 5 hours to reach full battery capacity.
• The LCSU 4 must be charged between each clinical use – to maintain satisfactory operation of the battery.
• To prolong Battery lifetime, it is recommended to place the Battery on continuous charge. It will not harm the unit. If continuous charging is not possible, charge Battery for minimum 5 hours once a month.
• If LCSU 4 battery is kept on constant charge, perform device test at least once a month to exercise battery.
• Do not store the battery when it is discharged. Always fully charge the battery before storage.
• Replace the battery when it does not pass Battery Test or after 2 years, whichever comes first.
• The battery warranty period starts when Laerdal ships the battery to the customer or distributor.  Although not a requirement, Laerdal expects the batteries shipped to be placed into Service (and start recharge cycle) within one year.

Product Details

The LCSU 4 (Laerdal Compact Suction Unit 4) from Laerdal Medical is a medical suction device for emergency healthcare where a patient’s airway is blocked and material must be removed. The LCSU 4 can be used either in the field or during patient transport. This Laerdal suction unit features a one-hand grip design and a disposable canister system. A large vacuum dial makes a clicking sound for ease of use in low-light situations and the LED control panel is easily viewable at night. A pediatric or small patient vacuum range is also noted on the control panel.

A high-efficiency filter kit is included with the 800ml version. The unit has a 2-year limited warranty (excluding the canisters, tubing systems, and battery). The NiMH 12-volt rechargeable batteries can be easily changed in field situations with no extra tools or equipment required. The battery run time is approximately 45 minutes (free flow).

The package includes Laerdal’s LCSU 4 unit, an 800 ml disposable canister, patient tube, AC/DC adapter charger with AC power cord, 12v dc power cord (for vehicle use), rechargeable battery, external battery charger, directions, carry bag, wire stand, and vacuum tube.

Product Details
• SKU # 01-437101
• LED Control Panel
• 800ml Canister
• Rechargeable 12v DC NiMH Battery
• 2-Year Limited Warranty
• Vacuum Range: 50 - 550+ mmHg (6.7 - 73.3 kPa)
• Latex-Free
• Air Flow @ Vacuum Inlet: 30 LPM (Free Flow)
• Arrows Show Vacuum Direction

Penn Care is the go-to supplier for EMS workers and first responders. Find all your emergency medical supplies needs, including first aid kits, catheters, and even carry cases. We’re always stocking the latest new products in the medical industry, so use the online checkout or call Penn Care today!

Note: the Laerdal Compact Suction Unit 4 should only be used by a trained healthcare professional. Misuse of this device could result in injury to the patient.
